Oak Frame Lantern

Lights

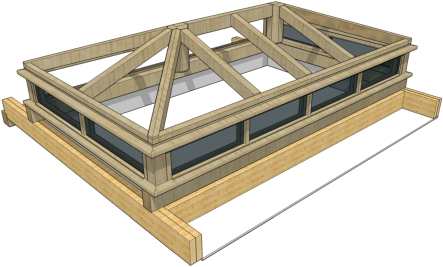

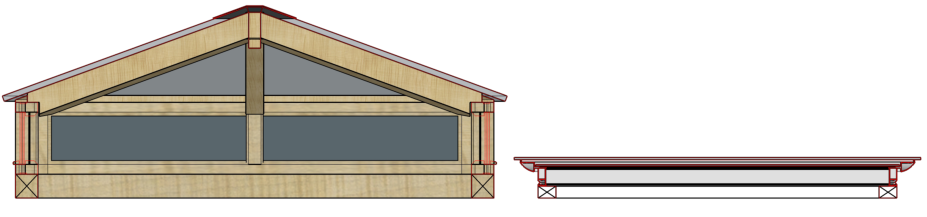

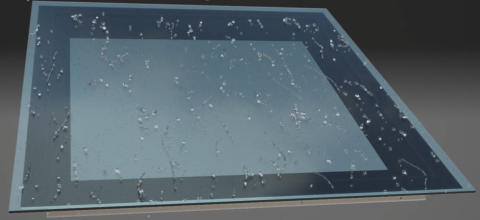

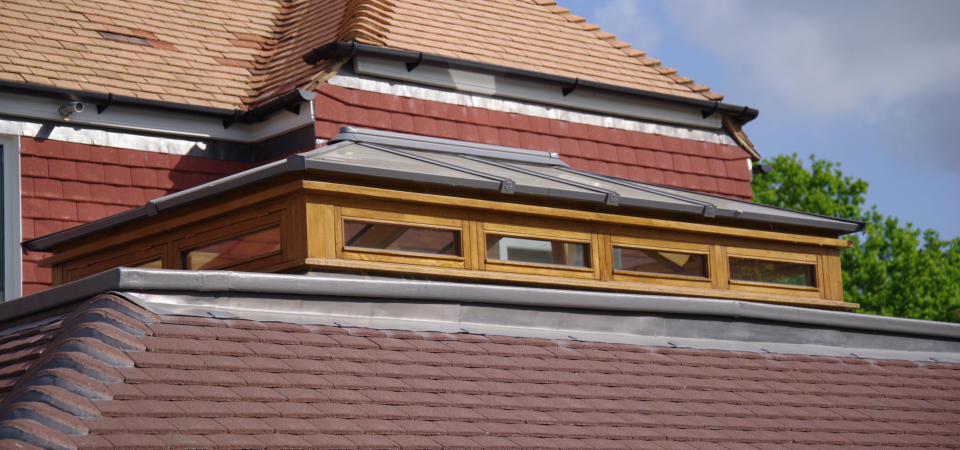

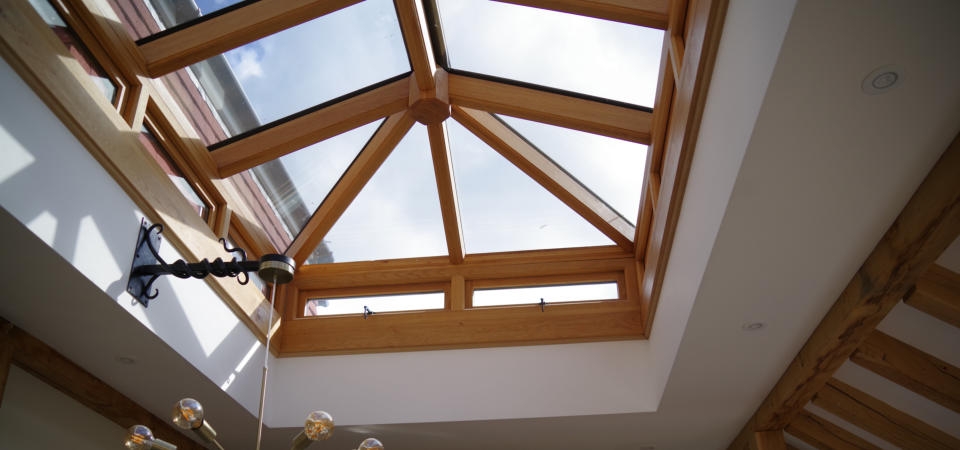

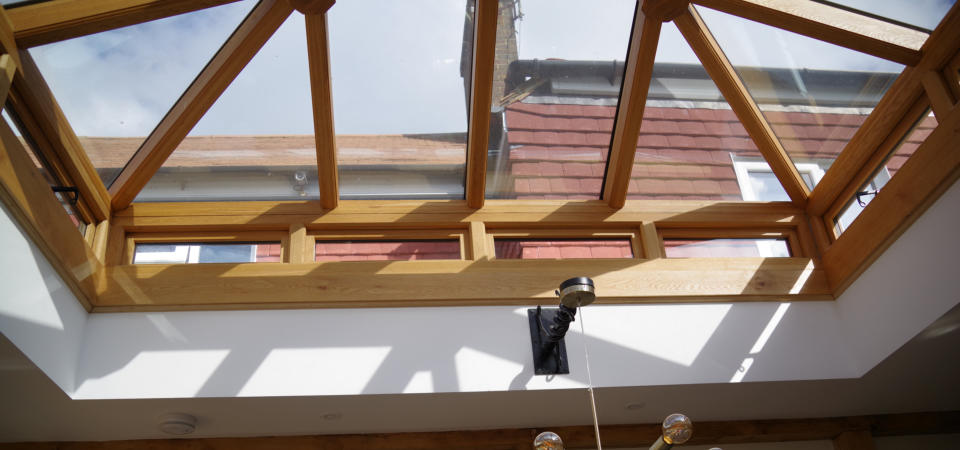

There are many different styles of lantern available - Traditional lantern fixtures made with solid oak frames and glass panels look fantastic and date back to Tudor times. Opening vents are not essential as a mansard or flat roof orangeries have well insulated roofs however if openers are required our preferred option is for a ‘ribbon’ lantern. This has an up stand of 300mm with top hung opening windows to allow for ventilation whilst still keeping rain out.

Why Choose an Oak Frame

Conservatory?

Whether you're updating an old uPVC conservatory or exploring new extension ideas, an oak frame conservatory is a versatile option that complements both traditional and modern homes. Like any home extension, various factors must be considered, from design aesthetics to building regulations. We’ll walk you through the different styles, materials, and finishes available, as well as important planning considerations, so you can create the perfect oak frame conservatory for your needs. Conservatories are usually best suited to north facing elevations as heat build up can be excessive in the hottest of summer months.

What Defines an Oak Frame

Conservatory?

A conservatory is traditionally defined as having at least 75% of its roof and 50% of its walls glazed. However, modern trends are shifting away from this format due to energy efficiency concerns. An oak frame conservatory is generally designed as a single-purpose room, often used as a living space, sitting room, or dining area, with large glazed sections that offer scenic outdoor views. This contrasts with other oak frame extensions, such as garden rooms or orangeries, which may serve multiple functions like combining a kitchen and dining area.

Comparing Oak Frame Extensions:

Conservatory, Orangery, or Garden

Room?

• Orangeries: These feature a flat or mansard roof with a glazed lantern and were originally designed in 17th-century Italy to house tropical plants. They offer a luxurious feel, with windows rather than fully glazed walls. • Garden Rooms: Typically built with solid roofs and large windows, these extensions blend seamlessly with the existing house and can incorporate dramatic glazed gables for an elegant touch.

Planning Permission & Building

Regulations

Like any home extension, an oak frame conservatory must comply with planning laws. If you live in a Conservation Area, you’ll need planning consent. However, under Permitted Development (PD) rights, you may not require formal permission if your conservatory: • Is no larger than 50% of the total land around the original house • Does not exceed 4 meters in height • Does not extend beyond the principal elevation existing house wall - usually the front wall of your property. Building regulations may also be required, especially if your conservatory is over 30sqm, or if it alters the existing structure, such as removing an external wall.

Design & Build Process

Oak frame conservatories offer flexibility in design, from minimalist contemporary styles to traditional aesthetics featuring dragon tie beams and direct oak glazing. You can choose from a variety of shapes, glazing options, and finishes to match your home’s character.

Glazing Options

• Bi-fold doors: Create seamless indoor-outdoor transitions • Face glazing: Provides a sleek, modern look while allowing for natural movement of the oak frame • Infill glazing: Allows for opening lights for a nice through breeze in the summer. • Direct glazing: Fixing glass direct to the rebated oak frame • Roof glazing: Adds extra light, with options like skylights or a partially solid roof for temperature control

Structural Considerations

Oak frames use green oak, which naturally shrinks and moves over time. Proper design calculations are essential to maintain structural integrity. Extensions can be built to any size, though conservatories must meet glazing percentage requirements. Large spans (up to 6 meters) are achievable without central support posts, creating a spacious and open layout.

Heating & Ventilation

Given the high level of glazing, heating and ventilation must be carefully planned. Options include: • Underfloor heating – Efficient and space-saving • Log-burning stoves – Adds character and warmth • Electric heaters – Flexible but can be costly to run • Roof vents & opening windows – Essential for temperature control and air circulation

Costs & Budgeting

The cost of an oak frame conservatory varies based on materials, design complexity, and finishes. On average, a high-quality oak frame extension costs around £50,000, covering the oak frame, glazing, joinery, and roofing. We also have a price configurator for garage buildings.

Tips for Cost Reduction:

• Opt for simpler designs to minimize material and labour costs. • Reduce the amount of exposed oak to cut expenses. • Choose cost-effective glazing and roofing options. • Plan heating and ventilation solutions carefully to avoid costly inefficiencies.

Pros & Cons of Oak Frame

Conservatories

Pros:

✔ Brings in natural light and creates a seamless indoor-outdoor connection ✔ Adds character with its warm, natural oak aesthetic ✔ More sustainable than uPVC, especially with FSC-certified timber ✔ Long-lasting – oak structures can stand for hundreds of years ✔ Excellent thermal performance compared to plastic or aluminium

Cons:

✖ More expensive than uPVC conservatories ✖ Requires periodic maintenance to retain its original oak colour ✖ Needs careful design planning to accommodate lighting and socket placement ✖ Site access can be a challenge for large oak frame deliveries

Can You Build an Oak Frame

Conservatory Yourself?

For skilled DIYers, an oak conservatory can be built using pre-assembled kit forms, provided by specialist suppliers. These kits include numbered components and assembly instructions for on-site construction. Albion Oak can supply in kit form if required.

Choosing a Supplier

When selecting an oak frame conservatory supplier, consider: • Whether you need a kit or a fully bespoke design • Their range of standard designs vs. custom options • Additional services like planning and construction assistance • Experience and reputation in the industry While oak remains the preferred choice for durability and aesthetics, other timbers like Douglas fir, larch, or glulam can be used. These materials offer different moisture content properties and stability, with some being more cost-effective.

Maintenance & Longevity

• Regularly clean gutters and downpipes to prevent damp issues. • Oak naturally weathers to a silvery hue but can be treated to retain its original colour. • With proper care, an oak frame conservatory can last hundreds of years.

Final Thoughts

Adding a conservatory enhances your home’s living space while increasing natural light and outdoor connectivity. If an oak frame doesn’t suit your needs, consider exploring modern conservatory ideas for alternative solutions.
